24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger

Contattaci

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger

Quantità di ordine minimo :	1 chilometro	Imballaggi particolari :	Tamburo di legno
Tempi di consegna :	2-5 giorni	Termini di pagamento :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione :	8000 chilometri al mese

Luogo di origine:	Guangdong, Cina	Marca:	JQ/OEM/Customize
Certificazione:	CE/ISO9001/RoHS/FCC	Numero di modello:	Gytc8s

Informazioni dettagliate
Numero di modello:	GYTC8S-24 48Nucleo	Tipo di fibra:	Modalità singola G652D o come richiesta
Giacca:	PE, MDPE, LSZH, PVC, HDPE	Membro della forza centrale:	Filo d'acciaio
armatura:	Nastro d'acciaio	Pacchetto:	Tamburo in legno/personalizzato
Applicazione:	Le Telecomunicazioni/rete	Fibra n.:	2-12 nuclei in fibra
Evidenziare:	24 core GYTC8S aerial fiber cable , 48 core steel messenger fiber optic , figure 8 self supporting fiber cable

Descrizione di prodotto

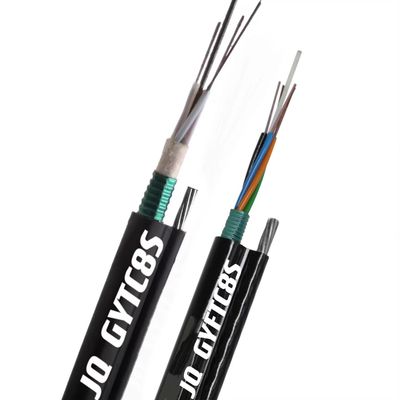

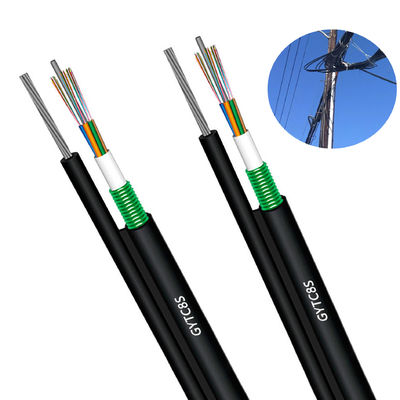

GYTC8S Optical Cable Overview
GYTC8S is a self-supporting aerial fiber optic cable with a stranded loose tube design, supporting 1–144 fibers. It features a steel messenger wire, corrugated steel tape armor, and a PE outer sheath for excellent tensile strength, crush resistance, and fiber protection. Ideal for long-distance and LAN communication.

Applications

Outdoor aerial installations
Long-distance communication lines
LAN and data transmission networks
Subscriber access and junction systems
CATV and computer networks

Product Parameters:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTC8S

12-288

7-20mm

70-300

3500/7000N

300/1000

15D/30D

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 0

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 1

Certification:

24 48 Core GYTC8S Self Supporting Aerial Figure 8 Fiber Optic Cable Steel Messenger 2

1. Who are we?
We are a fiber optic cable manufacturer in Guangdong, China, established in 2017, with 11–50 staff and global markets across Africa, South America, Europe, and Asia.

2. How do we ensure quality?
Pre-production samples and final inspections before shipment guarantee stable quality.

3. What products do we offer?
Fiber optic cables, FTTH drop cables, communication cables, indoor and outdoor fiber cables.

4. What services do we provide?
FOB/EXW delivery, multiple payment options (T/T, L/C, PayPal, etc.), in USD or CNY.

5. What is the MOQ?
1KM per order.

6. Can I get a sample?
Yes, free samples are available; buyers only pay for shipping.

7. Do you accept OEM/ODM?
Yes, our engineering team supports full customization.

8. What is the delivery time?
Usually 3–7 days after order confirmation, depending on quantity.
