Name: GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTC8S/GYFTC8S
Price: 480.00 USD
Availability: InStock

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead

1 chilometro

MOQ

Inquiry for price

prezzo

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Numero di modello: GYTC8S-24 48Nucleo

Tipo di fibra: Modalità singola G652D o come richiesta

Giacca: PE, MDPE, LSZH, PVC, HDPE

Membro della forza centrale: filo d'acciaio

armatura: Nastro d'acciaio

Pacchetto: Tamburo in legno/personalizzato

Applicazione: Le Telecomunicazioni/rete

Fibra n.: 2-12 nuclei in fibra

Evidenziare:

24 core figure 8 fiber optic cable

48 core aerial steel messenger cable

self supporting overhead fiber optic cable

Informazioni di base

Luogo di origine: Guangdong, Cina

Marca: JQ/OEM/Customize

Certificazione: CE/ISO9001/RoHS/FCC

Numero di modello: GYTC8S/GYFTC8S

Termini di pagamento e spedizione

Imballaggi particolari: Tamburo di legno o personalizzato

Tempi di consegna: 2-5 giorni

Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Capacità di alimentazione: 8000 chilometri al mese

Galleria

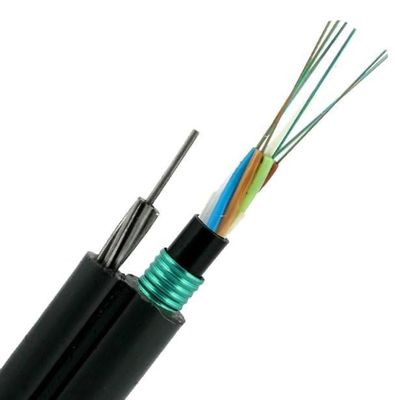

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead

Descrizione di prodotto

GYTC8S Aerial Fiber Optic Cable Steel Messenger Armored Outdoor Cable

Product Introduction:

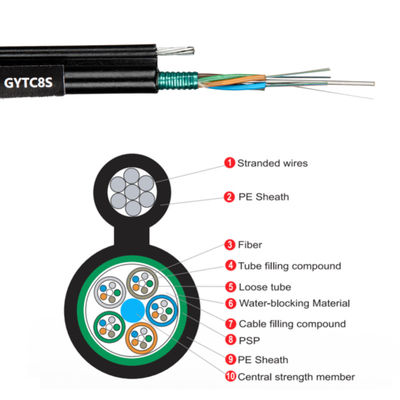

GYTC8S is a self-supporting aerial fiber optic cable with stranded loose tube structure, designed for outdoor communication with strong mechanical and environmental performance.

Key Features:

Steel messenger wire for self-supporting installation
Corrugated steel tape for enhanced crush resistance
PE outer sheath for weather protection
Supports 1–144 fiber cores
High tensile strength for long-span use

Applications:

Outdoor aerial installations
Long-distance communication lines
LAN and data networks
Subscriber access systems
CATV and telecom networks

Product Parameters:

Model

fiber cores

OD (outer dia.)

Weight

kg/km

Tensile

Strength Long

/Short Term

Crush Resistance

Long/Short Term N

/100mm

Bending Radius

Static

/Dynamic mm

GYTC8S

12-288

7-20mm

70-300

3500/7000N

300/1000

15D/30D

Specification:

item	value
Model Number	GYTC8S
Type	Outdoor Fiber Optic Cable
Place of Origin	Guangdong,China
Brand Name	jiqian
Structure	Multi loose tube
Number of Conductors	≥ 10
Fiber count	2-144 Cores
Fiber Type	G652D Single mode or as your request
Central strength member	Steel wire
Loose tube	Jelly filled
Loose tube	PBT
Jacket Sheath	PE
Color	Black or as your need
Package	Plywood Reel/customized
Application	Aerial,Overhead
operating temperature	-40 to +70
Certification	CE/ROHS/ISO9001

Optical Characteristics:

	G.655	50/125μm	62.5/125μm
G.652	G.655	50/125μm	62.5/125μm
Attenuation	'@850nm			≤3.0 dB/km
(+20℃)	'@1300nm			≤1.0 dB/km
	'@1310nm	≤0.34 dB/km	≤0.40 dB/km
	'@1550nm	≤0.21 dB/km	≤0.23 dB/km
	'@850nm			≥500 MHz·km
	'@1300nm			≥1000 MHz·km
Numerical Aperture				0.200±0.015NA

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 0

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 1

Certification:

GYTC8S Figure 8 Self Supporting Fiber Optic Cable 24 48 Core Aerial Steel Messenger Overhead 2

GYTC8S Fiber Optic Cable FAQ

Q1: What is GYTC8S cable used for?
A: It is used for outdoor aerial installations in telecom and data transmission networks.

Q2: What makes GYTC8S self-supporting?
A: It has a built-in steel messenger wire for aerial installation without extra support.

Q3: How many fiber cores does it support?
A: It supports from 1 to 144 fiber cores.

Q4: Is GYTC8S suitable for harsh environments?
A: Yes, it has steel tape armor and PE sheath for strong protection.

Q5: Where is GYTC8S commonly applied?
A: It is used in long-distance communication, LAN, CATV, and access networks.
