Name: ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: ADSS 96core 144core
Price: 168.32 USD
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Tipo di fibra: Modalità singola G652D o come richiesta

Applicazione: Antenna/canal/superficiale

Numero di conduttori: 48 96nucleo

Struttura: Tubo sciolto incagliato

Temperatura operativa: -40 ~ +60 C

Membro della forza centrale: FRP

Arco: 80m 100m 200m 300m

Marchio in fibra: Yofc/Fiberhome/Fujikura/Corning

Informazioni di base

Luogo di origine: Cina

Marca: Jiqian/Customize/ OEM

Certificazione: ISO9001 ROHS CE-EMC FCC SDOC

Numero di modello: ADSS 96core 144core

Termini di pagamento e spedizione

Imballaggi particolari: Tamburo in legno/personalizzato

Tempi di consegna: 2-4 giorni

Termini di pagamento: Western Union, T/T, L/C

Capacità di alimentazione: 100km al mese

Galleria

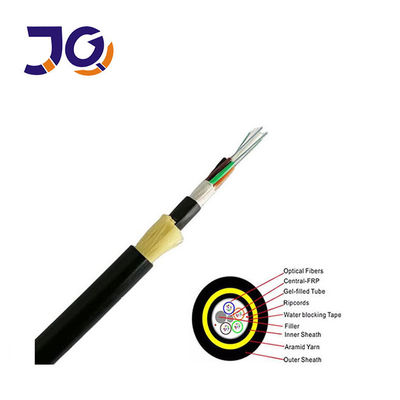

ADSS Fiber Optic Cable G652D Single Jacket Non Metallic 6 12 24 48 96 Core 100 200m Span

Descrizione di prodotto

Non-Metallic Single Jacket ADSS Fiber Optic Cable
6 / 12 / 24 / 48 / 96 Core | G652D | 100–200m Span

Key Features

All-Dielectric Design
Non-metallic structure ensures excellent electrical insulation and resistance to electromagnetic interference
Self-Supporting Structure
No messenger or support wire required, reducing installation time and cost
Single PE Jacket
Durable outer sheath provides UV, moisture, and weather resistance
Multiple Fiber Counts
Available in 6 12 24 48 96 cores to meet different network capacities
Optimized for Medium Span
Suitable for 100m to 200m aerial span installations

Applications

Aerial fiber optic communication networks
Power transmission and distribution lines
FTTH and access networks
Urban and rural overhead installations

Technical Data:

Cable fiber count				/	2~30	32~60	62~72
Structure				/	1+5	1+5	1+6
Fiber style				/	G.652D
Central strength member			material	mm	FRP
			Diameter (average)		1.5	1.5	2.1
Loose Tube			Material	mm	PBT
			Diameter (average)		1.8	2.1	2.1
			Thickness(average)		0.32	0.35	0.35
			Max fiber/loose tube		6	12	12
			Tubes color		Full color identification
			Fiber excess length	%	0.7~0.8
Water resistance			Material	/	Cable jelly
Inner sehath			material	mm	MDPE
			Inner sheath		0.9mm
Non-metallic strengthen components			Material	/	Aramid Yarn
Outer sheath			material	mm	MDPE
			Outer sheath		1.8mm
Cable diameter(average)				mm	10.9	11.5	12.1
Cable weight (Approximate)				kg/km	95	110	120
Cable Sectional area				mm2	93.31	103.87	114.99
Attenuation coefficient(Max)	1310nm			dB/km	0.35
	1550nm				0.21
Rated Tensile Strength(RTS)				kn	6
Max allowed tension( MAT)				kn	2.5
Annual average operating tension (EDS)				kn	3.2
Young's modulus				kn/mm2	7.8
Coefficient of thermal expansion				10-6/℃	9
Crush resistance		Long term		N/100mm	1100
		Short term			2200
Permission Bent Radius		static		mm	15 of OD
		dynamic			20 of OD

FAQ

1. Are you a manufacturer or trading company?
We are a direct manufacturer with our own factory located in Guangzhou, China. Factory visits are always welcome.

2. What is the minimum order quantity (MOQ)?
The standard MOQ is 1 km. Trial orders are supported, especially for new projects.

3. Do you offer samples?
Yes. Free samples are available. Customers only need to cover the shipping cost.

4. What payment methods do you accept?
We accept L/C, T/T, Western Union, and PayPal.

5. What is the delivery time?
Production time is usually 3–7 working days, depending on order quantity and specifications.

6. Can you provide OEM or customized products?
Yes. OEM and ODM services are available, including customized structures, specifications, and logos.

7. Which fiber brands are available?
We can supply fibers from Corning, YOFC, FiberHome, and other major brands upon request.
