ADSS Single Jacket Aerial Fiber Optic Cable Single Mode Aramid Yarn Strength Outdoor Overhead Installation FTTx Telecom

Descrizione di prodotto

Product Title
Factory Direct ADSS Optical Fiber Cable Single Mode Aramid Yarn High Strength Outdoor Aerial Use

What is ADSS Cable
ADSS (All Dielectric Self Supporting) fiber optic cable is a non metallic design for aerial installation on utility poles and transmission lines It can be installed safely in high voltage areas without grounding and provides reliable self support without messenger wires This makes it a cost effective alternative to OPGW and OPAC

Structure and Design
The cable uses stranded loose tube technology with fibers protected by water blocking gel A central FRP strength member provides core stability while layers of aramid yarn deliver high tensile strength The outer jacket is available in PE or AT depending on voltage and installation conditions

Key Features

• Non metallic design safe for live line installation and free from electrical interference

• Self supporting cable easy to install without extra support wires

• High tensile strength aramid yarn ensures durability and weather resistance

• Stable performance under mechanical stress and temperature changes

• Customizable designs for different span lengths and power line projects

Applications

• PE sheath for power lines below 110kV

• AT sheath for lines 110kV and above with anti tracking protection

• Span length and aramid yarn content can be adjusted to meet project requirements

Standards
Produced according to IEEE P1222 and IEC 60794 1 ensuring international quality and reliability

Details picture shows

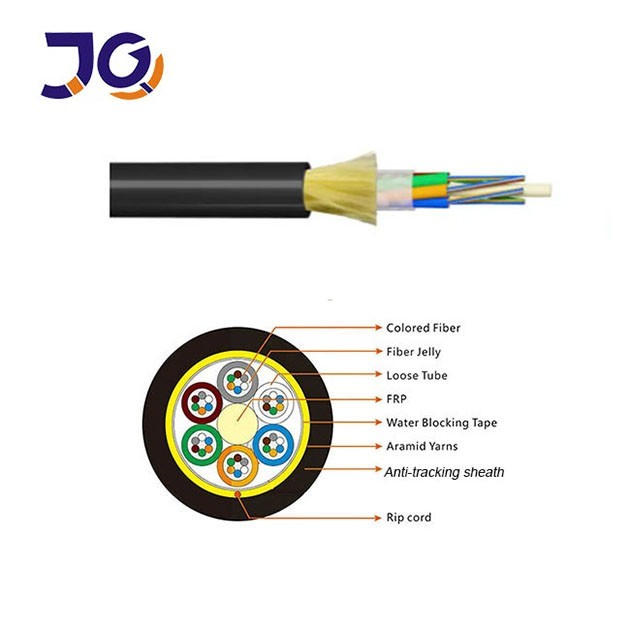

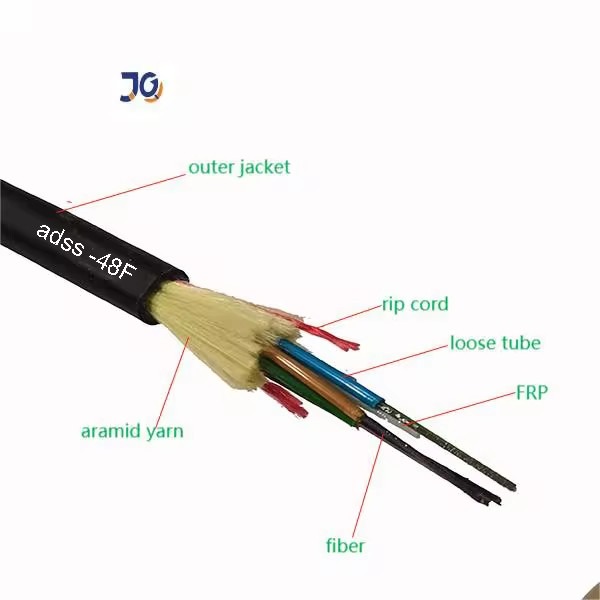

                                                 single jacket ADSS fiber cable

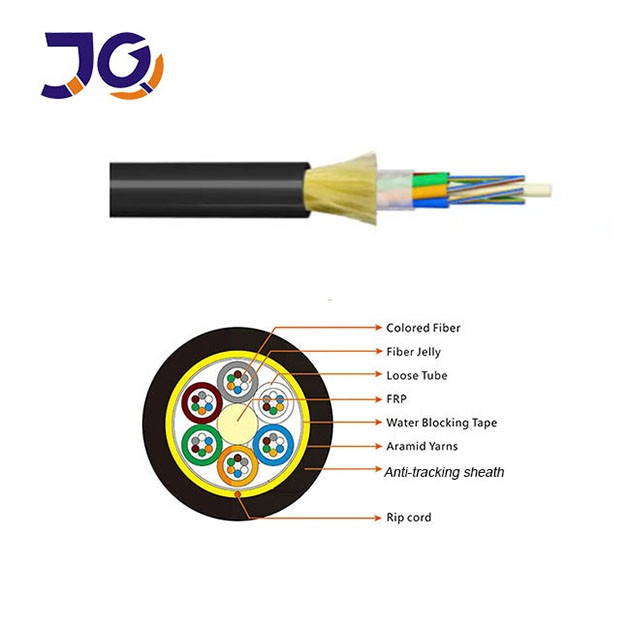

                                               double jacket ADSS fiber optic cable

Packing:

FAQ

Are you a manufacturer or a trading company
We are a direct factory with over 10 years of experience producing fiber optic cables drop cables patch cords and accessories Our plant is located in Guangzhou and we welcome customer visits

How do you ensure quality
Quality comes first Every fiber is strictly tested and inspected before shipment After confirming the quotation we can offer free samples for quality approval

Can I start with a small order
Yes small and trial orders are accepted especially for new projects or sample evaluation

What is the production lead time
Normally 3 to 7 working days depending on the order quantity We ship quickly once payment is received

Do you offer OEM or customization
Yes we can print your logo and customize designs to match your project requirements

Are the raw materials certified
Yes we use ISO9001 and RoHS certified materials to ensure stable and reliable performance
