Casa /Prodotti/cavo a fibre ottiche aereo/GYXTW Aerial Armored Fiber Optic Cable 2 24 Core Single Mode G652D 1km Spool Steel Wire Reinforced

GYXTW Aerial Armored Fiber Optic Cable 2 24 Core Single Mode G652D 1km Spool Steel Wire Reinforced

1000M
MOQ
Inquiry for price
prezzo
GYXTW Aerial Armored Fiber Optic Cable 2 24 Core Single Mode G652D 1km Spool Steel Wire Reinforced
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tipo di fibra: G652D/G657A1/G657A2/OM1/OM2/OM3/OM4
OEM: Disponibile
Applicazione: Aerea, sovraccarico/ sepoltura diretta
Numero di conduttori: 24core 48core 72Core
Struttura: Metropolitana sciolta incagliata
Temperatura operativa: -40 ~ +60 C
Marchio della fibra: Yofc/Fiberhome/Fujikura/Corning
Materiale della guaina esterna: Guaina esterna in PE/MDPE/HDPE
Evidenziare:

24 core aerial fiber optic cable

,

steel wire reinforced fiber optic cable

,

single mode G652D fiber cable
Informazioni di base
Luogo di origine: Cina
Marca: Jiqian/Customize/ OEM
Certificazione: ISO9001 ROHS CE-EMC FCC SDOC
Numero di modello: GYXTW-4/6/8/12B1
Termini di pagamento e spedizione
Imballaggi particolari: Tamburo in legno/personalizzato
Tempi di consegna: 2-4 giorni
Termini di pagamento: Western Union, T/T, L/C, Alipay
Capacità di alimentazione: 100 km per 2 giorni
Descrizione di prodotto

GYXTW Aerial Armored Fiber Optic Cable 2–24 Core Outdoor Single Mode Steel Tape Cable



Product Introduction

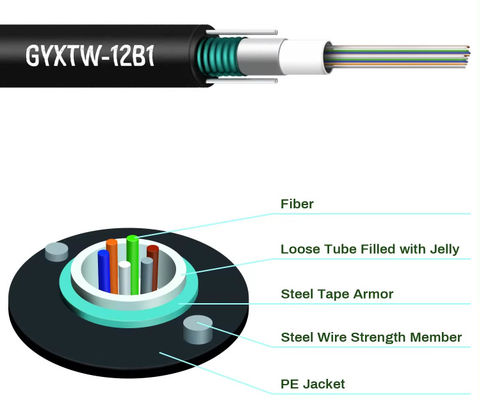

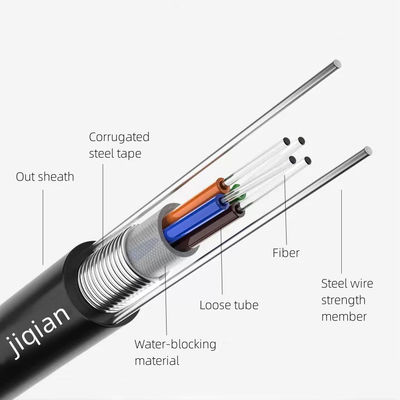

GYXTW fiber optic cable is a compact outdoor armored cable designed for aerial and duct installations. It features gel-filled loose tubes, PSP steel tape armoring, and dual parallel steel wires for enhanced tensile strength and moisture protection, ensuring stable long-distance communication performance.



Key Features

  • PSP steel tape armor for improved moisture and crush resistance
  • Dual parallel steel wires for strong tensile strength
  • Gel-filled loose tube for reliable fiber protection
  • Small diameter and lightweight for easy installation
  • Durable PE outer sheath for outdoor environments

Applications

  • Aerial communication networks
  • Duct installation projects
  • FTTH and access networks
  • Long-distance outdoor data transmission

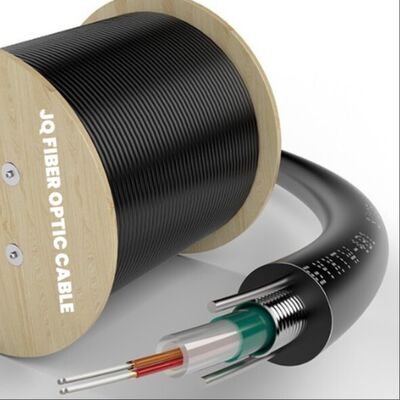

GYXTW Aerial Armored Fiber Optic Cable 2 24 Core Single Mode G652D 1km Spool Steel Wire Reinforced 0

GYXTW Aerial Armored Fiber Optic Cable 2 24 Core Single Mode G652D 1km Spool Steel Wire Reinforced 1


Optical Fibre Performance:



Type Attenuation(+20℃) Bandwidth Numerical aperture
@850nm @1300nm @1310nm @1550nm @850nm @1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ---
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ---
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA

Technical Performance

Model

Fiber

count

 Tube count

Filling

rope count

 Weight
(kg/km)

Tension

Long/Short term
(N)
GYXS/GYXTW-2~12Xn 2~12 82 600/1500 300/1000 10D/20D
GYXS/GYXTW-14~24Xn 14~24 127
GYXS/GYXTW-2~12Xn 2~12 124 1000/3000
GYXS/GYXTW-14~24Xn 14~24 147



Environmental Characteristics:



• Transport/storage temperature: -40℃ to +70℃

Application

• Outdoor Duct, overhead

product packing :

1). 4km/reel
2). 5km/reel Color Box and OEM Package available.
20" Container Full Load: 400km.
40" Container Full Load: 800km.



FAQ



1. What fiber types are available for GYXTW cable?
It is commonly available in single-mode G652D fiber, with core counts from 2 to 24 cores.



2. Is GYXTW cable suitable for aerial installation?
Yes, it is designed for aerial and duct installations with strong tensile performance.



3. Does the cable provide water protection?
Yes, the gel-filled loose tube and steel tape structure offer reliable moisture and water blocking.



4. What is the function of the steel tape armor?
The PSP steel tape improves crush resistance and protects the cable in outdoor environments.



5. What applications is this cable mainly used for?
It is widely used in FTTH networks, telecom access networks, and outdoor data transmission projects.
