Casa /Prodotti/cavo a fibre ottiche aereo/Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial

Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial

8 km
MOQ
Inquiry for price
prezzo
Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Applicazione: antenna esterna, rete FTTH FTTB FTTX
Conteggi delle fibre: 4-288 core
Durata: 50 m /100 m /200 m /300 m /400 m o su misura
Numero di forza: FRP, filato Aramid Kevlar
Struttura: Tubo sciolto incagliato
Colore della giacca: Nero o personalizzato
Tipo di fibra: G652D, OM1, G657, OM4, OM5
Materiale della giacca: PE, MDPE, LSZH, HDPE
Evidenziare:

ADSS fiber optic cable 24 core

,

aerial self-supporting fiber optic cable

,

HDPE single mode fiber cable
Informazioni di base
Luogo di origine: Guangdong Cina
Marca: JQ or Customized
Certificazione: ISO9001 CE ROHS Rohs FCC
Numero di modello: ADSS-24/48/72/96 fibre/anime
Termini di pagamento e spedizione
Imballaggi particolari: Tamburo di legno o tamburo di ferro
Tempi di consegna: circa 12 giorni
Termini di pagamento: T/T, Western Union, Alipay, L/C
Capacità di alimentazione: 800 km al giorno
Descrizione di prodotto

12 Core ADSS Fiber Optic Cable Outdoor Single Mode G652D Aerial Self Supporting Optical Cable



Product Features

  • Lightweight all dielectric design reduces load on poles and towers.
  • Aramid yarn strength members provide strong tensile performance for aerial installation.
  • UV resistant and weatherproof jacket ensures long term outdoor durability.
  • Stable single mode G652D fiber supports reliable long distance data transmission.
  • Self supporting structure allows fast installation without messenger wire.



Applications

  • Aerial fiber optic deployment on power distribution and transmission lines.
  • Telecommunication backbone and access networks.
  • FTTX and FTTH broadband network projects.
  • Railway communication systems and utility networks.
  • Outdoor overhead installations requiring reliable long distance connectivity.





Structure and Technical Specifications



1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.95 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.95 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.



2. ADSS double jacket



fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows

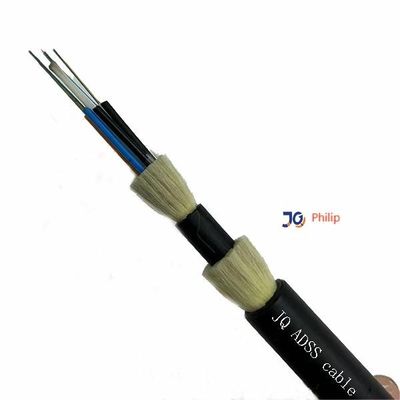

Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial 0



                                                 single jacket ADSS fiber cable

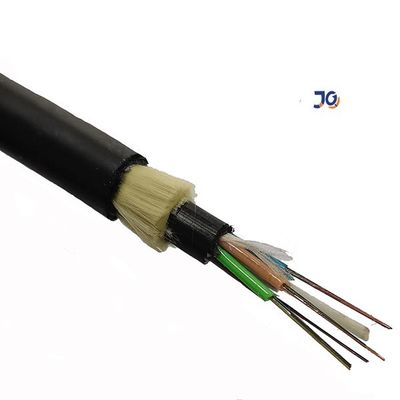

Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial 1



                                               double jacket ADSS fiber optic cable

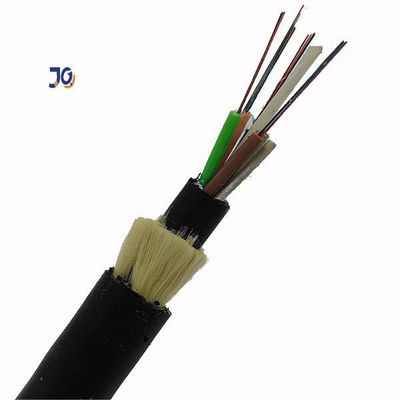

Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial 2







Packing:

Double Jacket ADSS Fiber Optic Cable 24 96 Core G652D Single Mode HDPE All Dielectric Self Supporting Aerial 3



FAQ

1. What is ADSS fiber optic cable?
ADSS (All-Dielectric Self-Supporting) cable is a non-metallic fiber optic cable designed for aerial installation without a messenger wire.



2. How many fibers are included in this cable?
This cable contains 12 single mode optical fibers with 9/125µm G652D specification.



3. Where can ADSS fiber optic cable be installed?
It is mainly used for aerial deployment on power lines, telecom poles, and outdoor overhead networks.



4. What are the advantages of ADSS cable?
It is lightweight, corrosion resistant, easy to install, and suitable for long distance outdoor communication networks.



5. Is this cable suitable for FTTH or FTTX projects?
Yes, ADSS cables are widely used in FTTH and FTTX network deployments requiring reliable outdoor fiber transmission.
