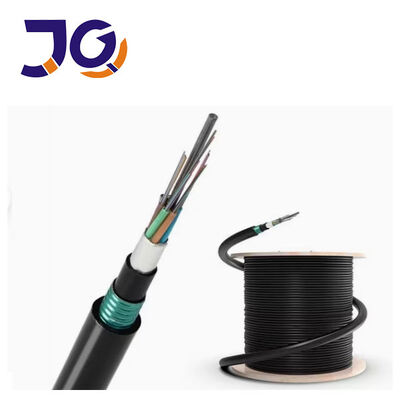

GYTA53 Direct Buried Armored Optical Fiber Cable For Underground Installation

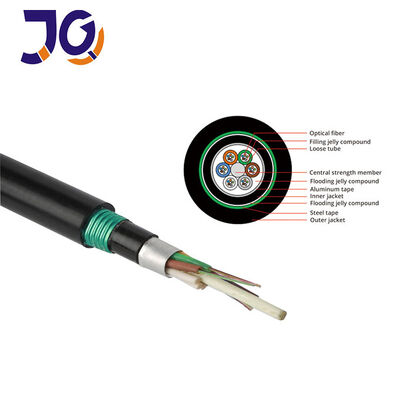

GYTA53 is a double steel tape armored outdoor optical cable. It adopts loose tube structure, filled with waterproof compound inside, equipped with double steel tape armor and outer PE sheath. It features excellent pressure resistance, impact resistance, waterproof, moisture-proof, anti-corrosion and anti-rat performance. With stable optical transmission performance, low attenuation and strong mechanical strength, it is mainly designed for direct burial laying. Widely used in long-distance communication, municipal engineering, power communication, road network and outdoor buried communication projects under harsh environments.
Main Features
- Double Armor + Double Sheath: Superior mechanical protection (crush, impact, rodents).
- Excellent Water Blocking: Gel-filled tubes + core filling + APL barrier → 100% waterproof.
- High Tensile & Crush Resistance:
- Long-term tensile: 600 N
- Short-term tensile: 1500 N
- Crush resistance: 1000 N/100 mm (short-term).
- Wide Temperature Range: −40 °C to +70 °C.
- UV & Aging Resistant: Black PE outer sheath for long outdoor service life.
- Stable Transmission: Low attenuation (e.g., ≤0.30 dB/km @1550 nm for G.652D).
Applications
- Direct burial (underground)
- Duct / conduit
- Non-self-supporting aerial
- Harsh outdoor environments: industrial areas, railway/road crossings, rodent-prone zones.
Company profile:
Guangzhou Jiqian Fiber Optic Cable Co., Ltd. is a high-tech manufacturer with 12 years of experience, certified by ISO9001, FCC, RoHS, and CE. We offer OEM services and custom fiber optic cable designs, including optical fiber cables and FTTH drop cables, used in telecom, railway, and other sectors, exported worldwide.
Packing&Shipping
FAQ
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
Feel free to inquire and request sample
