GYTA53 Cavo blindato in fibra ottica
ContPerson : JQ CABLE
Numero di telefono : +8618122383351
Whatsapp : +8618122383351
Quantità di ordine minimo : | 1 km | Imballaggi particolari : | Tamburo di legno |
---|---|---|---|
Tempi di consegna : | Normalmente 5-7 giorni, dipende dalla quantità dell'ordine | Termini di pagamento : | L/C, T/T, Western Union, Alipay |
Capacità di alimentazione : | 4500KM al mese |
Luogo di origine: | Cina | Marca: | Jiqian |
---|---|---|---|
Certificazione: | ISO 9001/CE/FCC/ | Numero di modello: | GYFTY |
Informazioni dettagliate |
|||
Luogo di origine: | Guangzhou, Cina | Marca: | Jiqian |
---|---|---|---|
Numero di conduttori: | ≥ 10 | Membro della forza: | FRP |
Produttore: | SÌ | Stoccaggio/temperatura di funzionamento:: | -40 a +70 ° C |
Applicazione: | DUCT/sottoterra | OEM: | SÌ |
Tipo di cavo: | cavo in fibra dielettrica | Conta delle fibre: | 4-288 Core |
Evidenziare: | underground fiber optic cable 144 core,aerial fiber optic cable GYFTY,48 core underground fiber cable |
Descrizione di prodotto
Underground Aerial Fiber Optic Cable 48 96 144 Core GYFTY
Features:
Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
(MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | |
24 | 8.8 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
36 | 8.8 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
48 | 9.0 | 65 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
60 | 9.2 | 75 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
72 | 9.5 | 75 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
96 | 11.0 | 103 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
144 | 13.8 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+70 |
Fiber Properties
The properties of single mode optical fiber (ITU-T Rec. G.652D)
Item | Specification |
Fiber type | Single mode |
Fiber material | Doped silica |
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.35 dB/km ≤0.32 dB/km ≤0.21 dB/km ≤0.30 dB/km |
Point discontinuity | ≤ 0.05 dB |
Cable cut-off wavelength | ≤ 1260 nm |
Zero-dispersion wavelength | 1300 ~ 1324 nm |
Zero-dispersion slope | ≤0.093 ps/(nm².km) |
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
PMD | ≤0.2 ps/km½ |
Mode field diameter @ 1310 nm | 9.2±0.4 um |
Core / Clad concentricity error | ≤0.5 um |
Cladding diameter | 125.0 ± 0.7 um |
Cladding non-circularity | ≤1.0% |
Primary coating diameter | 245 ± 10 um |
Proof test level | 100 kpsi (=0.69 Gpa), 1% |
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |

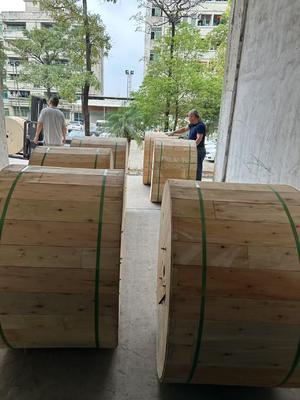

Packing & shipping:
Packing:Plywood 3/4/5 drum
Shipping:by sea/road
Company profile:
1.Located in Guangzhou China
2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world
Exhibition:
FAQ:
1.Are you the real manufacturer?
Yes. We are the real manufacturer with 12years history.
2.What is your fiber brand ?
YOFC/Fiberhome
