GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial

1 chilometro
MOQ
USD110~130 per KM
prezzo
GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tipo di fibra: Modalità singola G652D o come richiesta
Conteggio delle fibre: 2-144 core
Membro della forza centrale: filo d'acciaio
Corazzato: Nastro in alluminio
Guaina esterna: PE/ MDPE/ HDPE o come richiesta
Applicazione: Posa di sepoltura/ condotto diretto
Spam: 100/200/300/400/500m
Servizio: OEM e ODM
Evidenziare:

GYTA aluminum armored fiber optic cable

,

24 core outdoor loose tube cable

,

duct direct burial fiber optic cable
Informazioni di base
Luogo di origine: Guangdong, Cina
Marca: JQ/OEM/Customize
Certificazione: CE/ISO9001/RoHS/FCC
Numero di modello: Gyta 12core/24Core/48Core
Termini di pagamento e spedizione
Imballaggi particolari: Tamburo in legno/personalizzato
Tempi di consegna: 2-5 giorni
Termini di pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione: 8000 chilometri al mese
Descrizione di prodotto

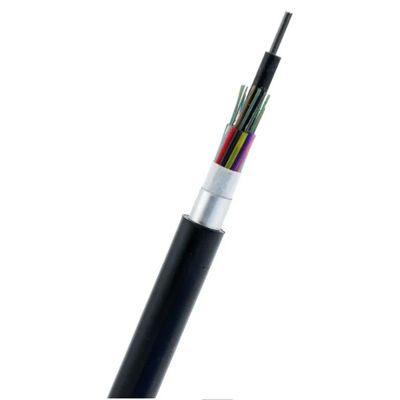

GYTA Armored Fiber Optic Cable Aluminum Tape Outdoor Aerial and Duct Communication Cable



Product Introduction
GYTA armored fiber optic cable features a stranded loose tube structure with an aluminum tape moisture barrier and durable PE sheath. It provides strong mechanical protection and stable optical transmission, making it suitable for outdoor aerial and duct installations in telecom networks.



Product Features

  • Aluminum tape armor for moisture and corrosion resistance

  • Central strength member for high tensile performance

  • Loose tube filled with water-blocking gel for fiber protection

  • Durable PE outer jacket for long-term outdoor use

  • Stable transmission for high-capacity communication networks

Application Scenarios

  • Telecom backbone and metropolitan area networks

  • CATV and broadband communication systems

  • Outdoor aerial and duct installations

  • Long-distance data transmission networks

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available

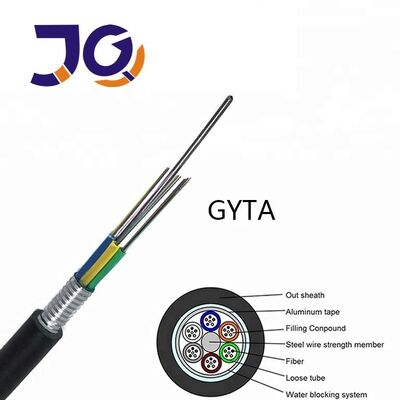

Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300



GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial 0

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial 1

WHY CHOOSE US:

GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial 2



Certification:

GYTA Aluminum Armored Fiber Optic Cable 24 48 Core Outdoor Loose Tube For Duct Direct Burial 3

FAQ – GYTA Armored Fiber Optic Cable



Q1: What is GYTA fiber optic cable used for?
A: It is mainly used for outdoor aerial and duct telecom networks.



Q2: What protection does the cable have?
A: It uses aluminum tape armor and a PE sheath for moisture and corrosion protection.



Q3: Is the cable waterproof?
A: Yes, the loose tubes are filled with water-blocking gel to prevent moisture penetration.



Q4: What fiber counts are available?
A: The cable supports multiple core options, commonly from 2 to 288 cores.



Q5: Do you support OEM customization?
A: Yes, OEM services are available, including custom structure, length, and labeling.
