GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct
GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct
GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct
Contattaci

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct

Quantità di ordine minimo : 1 chilometro Imballaggi particolari : Tamburo di legno
Tempi di consegna : 2-5 giorni Termini di pagamento : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Capacità di alimentazione : 8000 chilometri al mese
Luogo di origine: Guangdong, Cina Marca: JQ/OEM/Customize
Certificazione: CE/ISO9001/RoHS/FCC Numero di modello: Gyta

Informazioni dettagliate
Tipo: Cavo in fibra ottica esterna Tipo di fibra: Modalità singola G652D o come richiesta
Conta delle fibre: 2-144 core Colore: Personalizzato
Tubo: Tubo multi-loose Membro della forza centrale: Filo d'acciaio
Corazzato: Al nastro Guaina esterna: PE o come richiesta
Evidenziare:

GYTA armored fiber optic cable

,

144 core outdoor fiber cable

,

aerial duct fiber optic cable

Descrizione di prodotto

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture-Proof Design

✅ Key Features & Advantages

  • High Mechanical Strength: Excellent resistance to tensile stress, crushing, and environmental factors.

  • Reinforced Central Strength Member: Phosphatized steel wire core with optional PE coating for flexibility and corrosion resistance.

  • Superior Water-Blocking: Fully filled with water-blocking gel and compound to prevent water penetration.

  • Effective Moisture Protection: Aluminum tape with PE sheath provides a strong moisture and rust barrier.

  • Long Service Life: Reliable optical performance and durability for aerial and duct applications.

  • Wide Application: Ideal for telecom backbones, metropolitan networks, CATV systems, and high-speed data transmission.

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available

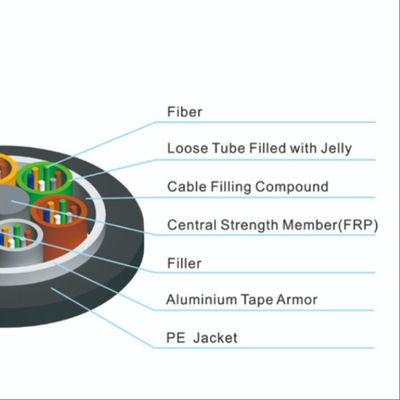

Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300





GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct 0

Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Packaging Details:
Wooden roll, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed.

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct 1

WHY CHOOSE US:



Certification:

GYTA Armored Optical Fiber Cable 2-144 Core Stranded Loose Tube Aerial Duct 2

✅ FAQ

1. Who are we?
We are a professional fiber optic cable manufacturer in Guangdong, China, established in 2017. Our main markets include Africa, South America, Western Europe, the Middle East, Southeast Asia, and South Asia. Our team has 11–50 employees.



2. How do we ensure product quality?

  • Pre-production samples provided.

  • Strict final inspections before shipment.

3. What products do we supply?
We offer Fiber Optic Cables, FTTH Drop Cables, Communication Cables, and Outdoor/Indoor Fiber Cables.



4. What services do we provide?

  • Delivery Terms: FOB, EXW

  • Payment Options: T/T, L/C, D/P, D/A, Credit Card, PayPal, Western Union, Cash

  • Accepted Currencies: USD, CNY

  • Languages: English, Chinese

5. What is your MOQ?
Our MOQ is 1KM.



6. Can I request a sample?
Yes, free samples are available. You only need to cover shipping costs.



7. Do you accept OEM or ODM orders?
Yes, we support both OEM and ODM projects.



8. What is the delivery time?
Orders typically ship within 3–7 days after confirmation, depending on size and specifications.
