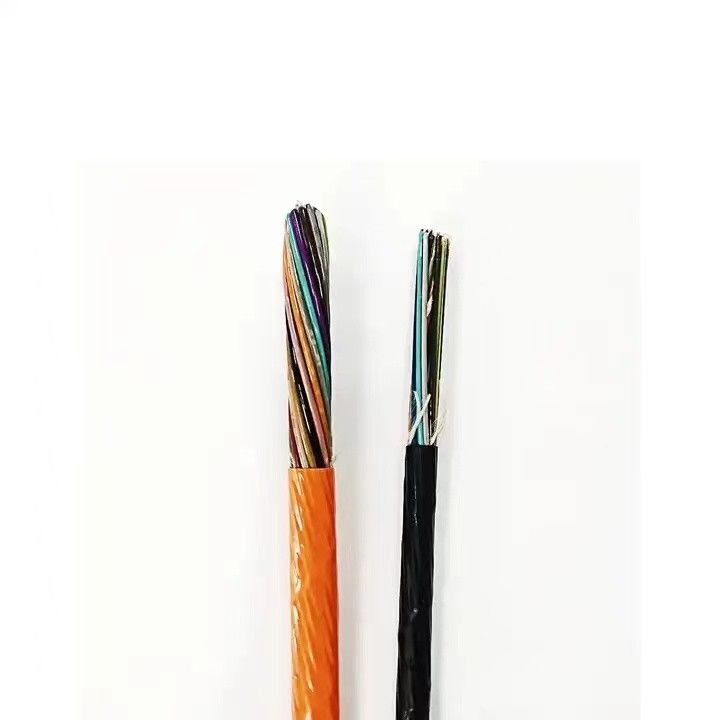

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission
Contattaci

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission

Quantità di ordine minimo : 1 km Imballaggi particolari : Tamburo di legno
Tempi di consegna : 5-8 giorni di lavoro Termini di pagamento : L/C, T/T, Western Union
Capacità di alimentazione : 30km al giorno
Luogo di origine: Guangzhou, Cina Marca: JQ/OEM/Customize
Certificazione: ISO9001 ROHS CE-EMC FCC SDOC Numero di modello: GCYFY/GCYFTY

Informazioni dettagliate
Conta delle fibre: 4-144 core Tipo di fibra: Modalità singola/modalità multi
Giacca: PE/PVC/LSZH/HDPE/MDPE Colore: Nero o arancio o su misura
Nome prodotto: micro cavo Aero-soffiato Numero di modello: GCYFY/GCYFTY
Lunghezza: 2 km o lunghezza personalizzata Installazione: Aereo o condotto
Numero di conduttori: ≥ 10 All'aperto: Cavo in fibra ottica esterna
Membro della forza centrale: Filtro in FRP o in acciaio Materiale di bloccare l'acqua: Nastro bloccante dell'acqua o composto di riempimento
armatura: Armature a nastro di acciaio ondulato Dimensione del cavo: 8mm ~ 16mm
Core: Come da richiesta dell'acquirente Struttura del cavo: Armature a nastro di acciaio a tubo multi-loose
RTS: 45-80 kN Temperatura operativa: -40 ° C a +70 ° C.
OEM: Accettabile Garanzia: 25 anni
Tubo sciolto: PBT Modello: Cavi a fibra ottica blindati
Materiale della giacca: PE Modello in fibra: Singlemode/Multimode
Nucleo: 12-144 core Diametro del messaggero: 5,0 mm
Colore della giacca: Nero Fuori guaina: HDPE
Tempo dell'ascensore: Più di 20 anni Materiale del tubo sciolto: PBT
Struttura: tubo centrale allentato Materiale della guaina interna: PE/HDPE
Campione: Gratuito Numero principale: 6 core/8 core/12 core
Membro della forza: Filo d'acciaio Tipo di cavo: Tubo sciolto
Evidenziare:

96 core microduct fiber cable

,

air blown outdoor fiber optic

,

loose tube high speed cable

Descrizione di prodotto

Stranded Loose Tube GCYFY Air-Blown Micro Duct Cable

Product Description

The GCYFY air-blown micro duct cable features a stranded loose tube design for high-performance communication networks. Compact, lightweight, and easy to handle, it is optimized for air-blown installation in micro ducts, allowing rapid and cost-effective deployment.

Each loose tube houses premium optical fibers with water-blocking gel, ensuring strong mechanical protection and stable signal transmission even in harsh conditions. The stranded construction improves tensile strength, while the durable outer sheath resists moisture and environmental impact.

Thanks to its high fiber count and efficient structure, this GCYFY cable is ideal for FTTx, backbone links, data centers, and metro networks requiring high-speed, high-capacity data transmission.





1. Model: GCYFY-96B1.3

2. Cable Cross-section





96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 0







Optical Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%





Fiber & Tube Color


96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 1

Features

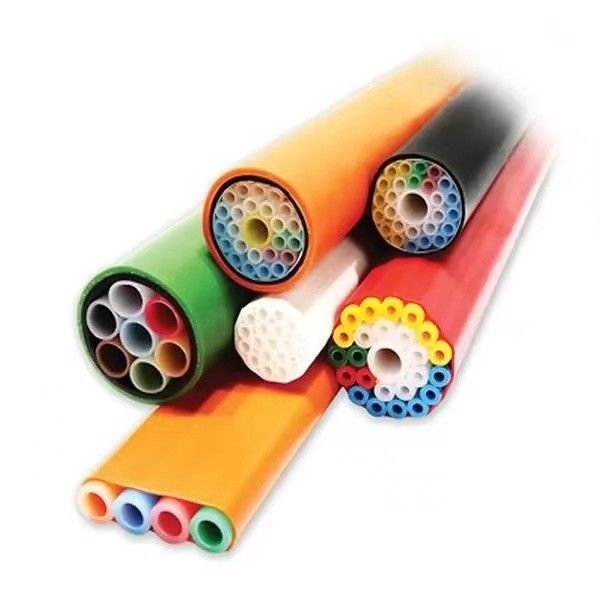

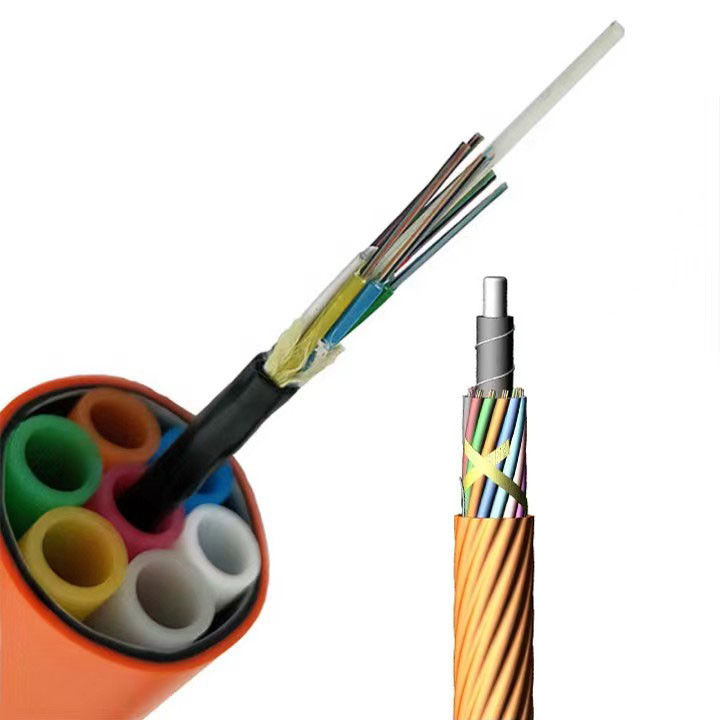

GCYFY stranded loose tube air-blown micro cable uses a non-metallic strength member and unarmored structure, making it lightweight and flexible. It can be installed by air-blowing into pre-laid micro ducts, eliminating the constraints of traditional cable-laying methods. This design increases duct utilization, simplifies network expansion, and supports efficient, scalable deployment.



96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 2







Cable Parameters





Cores



Cores/tube



FRP diameter (mm)



Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)
12 12 1.5 0.5±0.1 5.6 24
24 12 1.5 0.5±0.1 5.6 24
48 12 1.5 0.5±0.1 5.6 24
72 12 1.5 0.5±0.1 5.6 24
96 12 2.5 0.5±0.1 6.6 38





Environmental Characteristics

Working temperature -35oC ~ +70oC
Storage and transportation temperature -35oC~ +70oC
Installation temperature -15oC~ +60oC





Applications
• Ideal as a drop cable in FTTH networks, connecting branch points to subscriber access points through air-blown installation.
• Suitable for backbone, metropolitan area, and access networks requiring high-speed, high-capacity transmission.



Delivery Length
• Standard supply length: 2,000 m per reel; custom lengths available on request.

96 Core GCYFY Air Blown Microduct Fiber Cable Stranded Loose Tube High Speed Data Transmission 3



FAQ

Q1: What is GCYFY air-blown micro duct cable used for?
A: It is widely applied in FTTx projects, backbone links, data centers, and metro networks, delivering high fiber capacity and fast deployment.



Q2: How is it installed?
A: The cable is air-blown into micro ducts, allowing quick, flexible, and cost-efficient installation.



Q3: Why use a stranded loose tube design?
A: It enhances strength, flexibility, and fiber protection, ensuring stable data transmission.



Q4: Is it water-resistant?
A: Yes, water-blocking gel inside the loose tubes prevents moisture and safeguards fibers.



Q5: What fiber counts are available?
A: Standard counts include 24, 48, and 96 cores, with custom options available on request.



Q6: Do you offer OEM service?
A: Yes, we can provide OEM service and print your logo or label on the cable and packaging.



Q7: Can I request samples?
A: Yes, sample orders are available for quality testing before bulk purchase.
