Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center
Contattaci

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center

Quantità di ordine minimo : 50pcs Imballaggi particolari : PE sacchetto o scatola di plastica e scatola dei cartoni animati
Tempi di consegna : 3-5 giorni di lavoro Termini di pagamento : Western Union, T/T, L/C
Capacità di alimentazione : 30000 pezzi al giorno
Luogo di origine: Guangzhou, Cina Marca: JQ/OEM/Customize
Certificazione: ISO 9001,ROHS CE-EMC FCC SDOC Numero di modello: Trecce in fibra ottica

Informazioni dettagliate
Applicazione: Rete ftth ftttb ftttx Tipo di connettore: SC UPC
Lunghezza: 3 metri o su misura Colore: personalizzato
Diametro del cavo: 0.9/2,0/3,0 mm Ferrule End-Face: PC/UPC/APC
Materiale della giacca: PVC/LSZH/PE Nome prodotto: Trecce in fibra ottica
Lunghezza d'onda del trasmettitore: 1310nm Articolo: Corde di patch in fibra ottica
Tipo di fibra: G.652D/G.657A1/G.657A2 Rete: 4g, 5g
Fibra n.: 1 (semplice) Prodotti: OM4 SC-SC 12Core Fiber Optic Patch Cable
Conta in fibra: 9/125um, 50/125um, 62,5/125u Perdita di ritorno: > 50 dB (UPC) /> 60 dB (APC)
Diametro del cavo: 2.0 3,0 mm Ferrule: APC
Tipo polacco: UPC a UPC Lunghezza del cavo: 1 m/2m/3m/5m/10m/personalizzato
Modalità in fibra: Modalità singola Tipo di cavo: In modalità singola/multi-modalità
Numero di core: Singolo core Lunghezza d'onda: 1260-1650nm
Connettori opzionali: LC/SC/FC/ST Interno: Ceramica
Lucidare: PC o UPC Caratteristiche: Rendimento elevato in IL&RL
Numero di conduttori: 1 Giacca: PVC/LSZH
Evidenziare:

12 core fiber optic pigtail

,

SC UPC multimode pigtail

,

FTTH fiber optic patch cord

Descrizione di prodotto

FTTH FTTB 12 Core SC UPC 0.9mm Multimode Fiber Optic Pigtail



Product Description
Our fiber optic pigtails are essential for optical network connections, featuring pre-terminated connectors for quick and reliable installation. Available in 4, 6, 8, 12, 24, and 48 cores with single-mode or multimode options, they are ideal for patch panels, cross-connects, and equipment jumper connections. Each pigtail is manufactured with high-quality riser-grade cable and factory-tested to meet or exceed Telcordia standards, ensuring stable performance and low insertion loss.



Key Features

  • Multiple connector types: SC, LC, FC, ST, MU, MT-RJ, E2000

  • Polishing options: PC, APC, UPC, SPC

  • Fiber types: Single-mode (9/125) or Multimode (50/125, 62.5/125)

  • Cable diameters: Φ0.9mm, Φ2.0mm, Φ3.0mm

  • Configurations: Bunch, ribbon fan-out, simplex, duplex

  • Jacket materials: PVC or LSZH, with OM1, OM2, OM3 options

  • Excellent durability, low insertion loss, and full interchangeability

  • Customizable lengths, connectors, and fiber counts available

Applications

  • FTTH (Fiber to the Home) and FTTB deployments

  • LAN and enterprise network connections

  • CATV and CCTV systems

  • High-speed data transmission

  • Fiber optic sensing and monitoring systems




Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80





Detailed Image

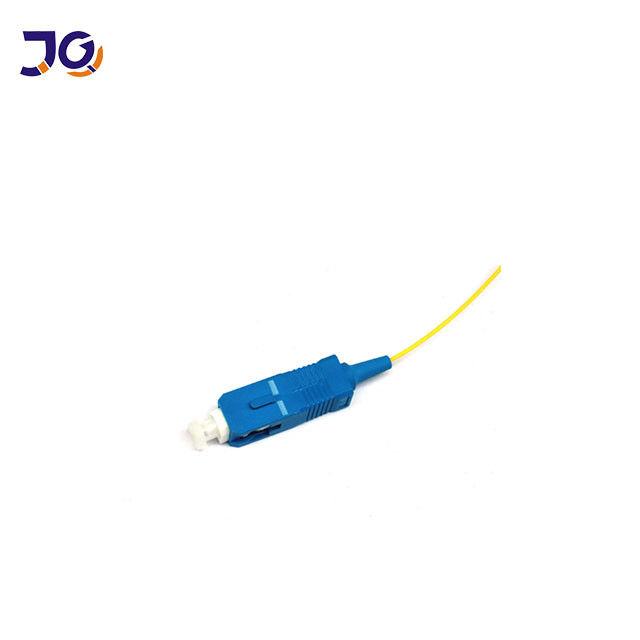

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 0

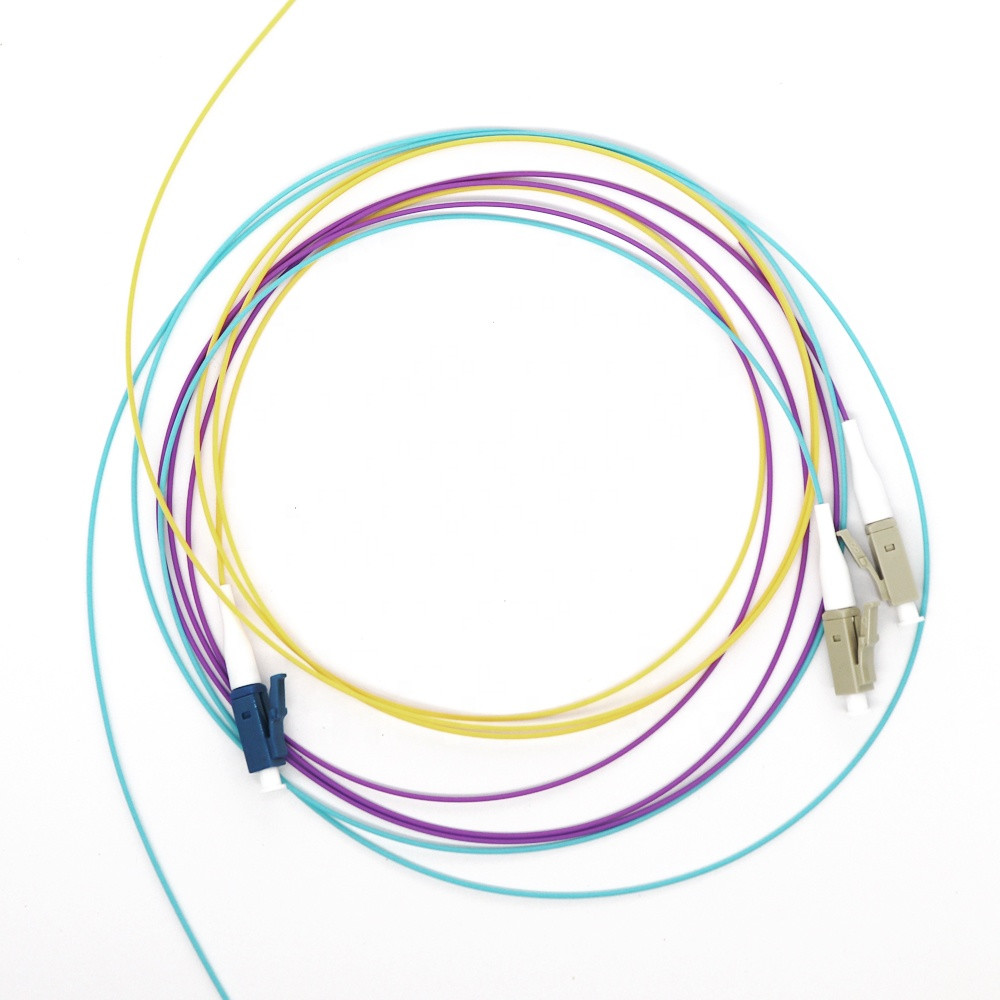

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 1

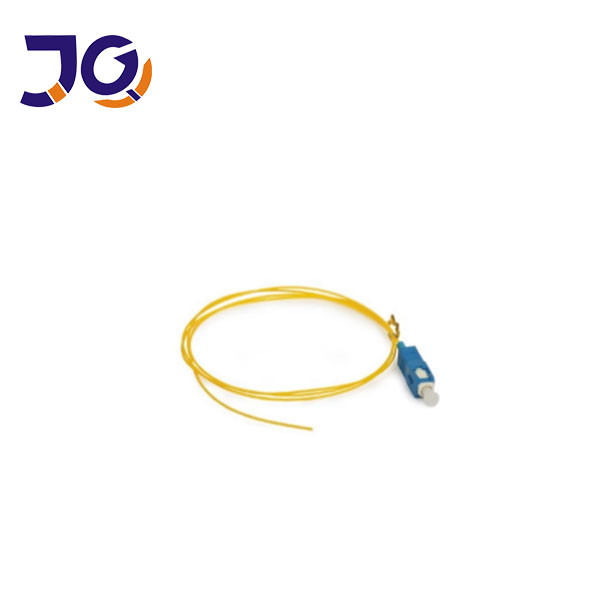

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 2

Fiber Optic Pigtail 12 Core SC UPC 0.9mm Multimode FTTH FTTB Network Data Center 3



FAQ – Frequently Asked Questions



1. Are you the actual manufacturer?
Yes, we are a direct manufacturer with over 10 years of production experience.



2. Do you accept small orders?
Absolutely. Small orders are welcome, and we fully support new projects since most businesses start small.



3. What is your product warranty?
We provide a 25-year warranty for all fiber optic cables.



4. What is your delivery time?
Typically, we ship within 3–5 working days, depending on order quantity.



5. What is your annual production capacity?

  • Outdoor / Indoor Fiber Optic Cable: 6,000,000 KM per year

  • FTTH / FTTX / FTTA Cable: 6,000,000 KM per year

  • Patch Cords & Pigtails: 12,400,000 pieces per year

6. Can you offer customized products and logo printing?
Yes, we provide OEM & ODM services. Just send us your design or specifications.
