Product Description – GJYXCH FTTH Drop Cable
The GJYXCH FTTH drop cable is designed for high-speed fiber-to-the-home (FTTH) networks, providing reliable last-mile connections. It features 1, 2, or 4 single-mode fibers (G652D / G657A1 / G657A2) and is available in 1 km or 2 km lengths.

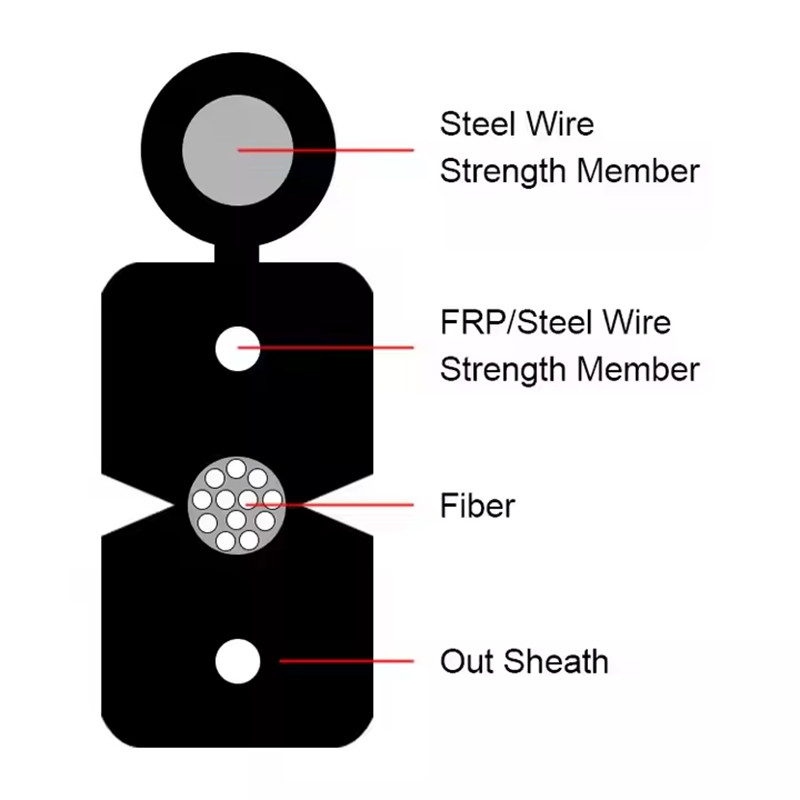

Construction & Features
-
Central Fiber Core: Optical fibers are positioned at the center, ensuring minimal stress and stable signal transmission.
-
Dual Parallel Steel Wire Reinforcements: Provide excellent mechanical strength and resistance to bending or crushing.
-
Additional Steel Wire Messenger: Enhances tensile strength for aerial and vertical installations.
-
Durable LSZH Jacket: Black or colored Low Smoke Zero Halogen sheath ensures safety and environmental protection for indoor and outdoor use.
-
Compact & Flexible: Lightweight construction allows easy handling, installation, and routing in ducts, walls, or aerial setups.
-
Bend-Insensitive Fiber: Maintains high signal quality even in tight bends or complex routing scenarios.
Applications
-
Last-mile FTTH connections in residential and commercial buildings
-
Indoor distribution within apartments, offices, and data centers
-
Outdoor aerial deployment using steel messenger for support
-
Ideal for telecom operators, broadband networks, and smart home systems
Advantages
-
High durability against tensile, crush, and environmental stress
-
Flexible installation for ducts, walls, and aerial routes
-
Reliable performance for high-speed internet, IPTV, VoIP, and smart home connectivity
Key Characteristics
Compact Design
The cable features a small-diameter construction with either tight-buffered or loose-tube fiber arrangements, typically 3–6mm in diameter, allowing for easy handling and flexible installation.
Robust Mechanical Strength
Reinforced with aramid yarn (Kevlar) or fiberglass rods, the cable offers excellent tensile performance, usually exceeding 100N. It remains flexible and can withstand repeated bending with a minimum bend radius of 20× cable diameter.
Environmental Durability
Equipped with UV-resistant LSZH or PE jackets, the cable operates reliably in temperatures from -40°C to +70°C. Water-blocking features—including gel or dry swellable tapes—protect against moisture intrusion.
Installation Advantages
Lightweight, typically under 10 kg/km, the cable is easy to handle. Pre-connectorized options are available for faster deployment. Supports multiple installation methods, including aerial suspension, duct placement, and direct burial.
Superior Transmission Performance
Provides low optical attenuation (<0.4 dB/km at 1310 nm) and reduces macro/micro bending losses, ensuring stable signal transmission.
Application Scope
-
Outdoor aerial installations for FTTH networks, ensuring reliable fiber connectivity in exposed environments.
-
Vertical cabling inside buildings, supporting high-speed, multi-gigabit data transmission.
-
Backbone and mission-critical networks, delivering high-performance optical links for telecom, data centers, and industrial communications.
Optical Characteristic:
|
Fiber count
|
1F/2F/4F
|
|
Attenuation
|
1310nm:≤0.34 1550nm:≤0.21
|
|
Color Of fiber
|
Blue Orange Green Brown
|
|
Fiber Type
|
G652D/G657A1/G657A2
|
|
Strength member
|
Steel wire/FRP/KFRP
|
|
Outer sheath
|
LSZH Lower smoke zero halogen frame retardant & UV Anti
|
|
Cable Diameter dimensions
|
2.0( Height) × 3.0W ± 0.1 mm(width)
|
|
Operation temperature range
|
-20 ℃ to + 70 ℃
|
|
Installation temperature range
|
-0 ℃ to + 60 ℃
|
|
Transport and storage temperature range
|
-20 ℃ to + 70 ℃
|
|
Tension Load (N)
|
Short term :800N Long term :500N
|
|
Crush Load(N)
|
Long term 1000 N/100mm Short term:2200N/100mm
|
|
Minimal installation bending radius
|
30 x OD
|
|
Minimal operation bending radius
|
15 x OD
|
|
Cable marking
|
The marking length 1meter apart , as require
|
|
Packing
The packaging is up to you, we can provide a variety of packaging.
Certificate:
FAQ
Q1: Are you a trading company or a manufacturer?
A: We are a manufacturer with over 10 years of experience in fiber optic cables, drop cables, patch cords, and related products. Our factory is located in Guangzhou—visits are always welcome.
Q2: How do you ensure product quality?
A: Every fiber is strictly tested before shipment. After confirming the price, you can request free samples to evaluate quality.
Q3: Do you accept small orders?
A: Yes, small orders are welcome. We support new projects of any size, as we know business often starts small.
Q4: What is the typical delivery time?
A: Delivery generally takes 3–7 working days, depending on the order quantity. We prioritize prompt shipment after payment.
Q5: Do you provide OEM services?
A: Yes, we offer OEM services and can print your logo on the products. Customization ideas are always welcome.
