Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network

1 km
MOQ
Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Tipo di fibra: G657A1/G657A2/G652D
Conta delle fibre: Il 1/2/4 di centro
Colore della giacca: Nero, bianco, su richiesta.
Diametro del cavo: 2.0*5.0mm
Membro della forza: Filo d'acciaio da 0,45 mm
Materiale della giacca: LSZH/PVC
Cavo di messaggero: Filo di acciaio da 1,0 mm
Applicazione: Rete ftth ftttb ftttx
Evidenziare:

Outdoor FTTH drop fiber cable G657A1

,

Single mode fiber optic drop cable 20x50mm

,

FTTH access network fiber cable with warranty
Informazioni di base
Luogo di origine: Guangzhou, Cina
Marca: JQ/OEM/Customize
Certificazione: ISO9001 ROHS CE-EMC FCC SDOC
Numero di modello: Gjyxch
Termini di pagamento e spedizione
Imballaggi particolari: imballaggio in legno o cartone
Tempi di consegna: 5-8 GIORNI LAVORATIVI
Termini di pagamento: L/C, T/T, Western Union
Capacità di alimentazione: 30km al giorno
Descrizione di prodotto

Outdoor FTTH Fiber Optic Drop Cable G657A1 Self Supporting 1 2 4 Core LSZH 2.0x5.0mm Steel Wire Strength Member

Product Description

The FTTH fiber optic drop cable is designed for outdoor last-mile access networks, connecting distribution points to end users.

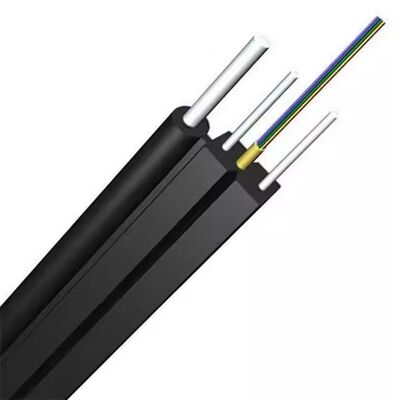

The optical fiber is placed between two parallel steel wires or FRP strength members, providing excellent tensile and crush resistance.
The cable is protected by a low smoke zero halogen (LSZH) sheath, ensuring safety, durability, and easy installation.

Features

  1. 1.0mm steel wire strength member for self-supporting aerial installation

  2. Dual FRP or steel wire ensures high crush resistance

  3. Novel flute design for easy stripping and fast splicing

  4. LSZH flame-retardant sheath safe for outdoor use

  5. Compact size 2.0x5.0mm lightweight and flexible

  6. Complies with Telcordia GR-326-CORE standard

Applications

• FTTH outdoor access network
• Aerial self-supporting drop installation
• Last-mile broadband connection



Technical parameters

Product
Model		 Fiber
Count
(core)		 CableDiameter(mm) CableWeight
(kg/km)		 Tensile
Strength
Long/Short
Term(N)		 Crush
Resistance
Long/Short
Term(N)		 Bending
Radius
Static/
Dynamic
GJXH 1 (2.1+0.1)*(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 2 (2.1+0.1)x(3.1+0.1) 10 1000/2200 200/1000 15/30
GJXH 4 (2.3+0.1)*(3.3+0.1) 12 1000/2200 200/1000 |15/30
GJXFH 1 (2.1+0.1)x<(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 2 (2.1+0.1)x(3.1+0.1) 9 800/1800 200/1000 15/30
GJXFH 4 (2.1+0.1)x(3.1+0.1) 11 800/1800 200/1000 15/30
GJYXCH 1 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXCH 2 (2.1+0.1)*(5.1+0.1) 21 1500/2500 500/1300 |15/30
GJYXCH 4 (2.1+0.1)x(5.1+0.1) 21 1500/2500 500/1300 15/30
GJYXFCH 1 (2.1+0.1)*(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 2 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30
GJYXFCH 4 (2.1+0.1)x(5.1+0.1) 20 1500/2500 500/1300 15/30





Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 0

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 1

Product detail

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 2





Package

Nominal shipping length of the cable will be 1~3 km. Other length is also available if required by buyer.
Each length of the cable will be wound on a separate strong wooden.one drum in a carton box

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 3

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 4

Outdoor FTTH Drop Fiber Cable G657A1 Single Mode 20x50mm for Access Network 5



FAQ



1. Are you a trading company or a manufacturer?
We are a professional manufacturer with over 10 years of experience, specializing in fiber optic cable, FTTH drop cable and patch cord production. Our factory is located in Guangzhou, China. Factory visits are welcome.



2. How do you ensure product quality?
All fiber optic cables are 100% tested before delivery. Free samples are available for quality evaluation after price confirmation.



3. Do you accept small orders?
Yes. Small orders are accepted. We support new projects and believe long-term cooperation starts from small orders.



4. What is your delivery time?
Normally 3–7 working days, depending on order quantity. We always arrange production and shipment as quickly as possible after payment.



5. Do you provide OEM service?
Yes. OEM and logo printing services are available. Custom designs are welcome.
