MGXTSV / MGTSV Mine Flame-Retardant Fiber Optic Cable
Anti-Rodent | Fireproof | High-Strength Mining Communication Cable
Product Description
The MGXTSV / MGTSV mining flame-retardant optical cable is designed to meet the demanding requirements of underground mining environments.
-

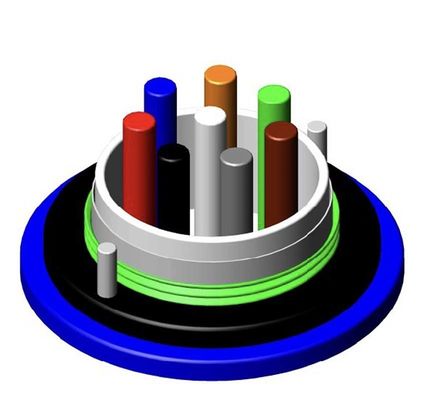

250μm optical fibers are housed in high-modulus loose tubes filled with waterproof gel.
-
A central metal strength member provides enhanced tensile performance.
-
For smaller core counts, the strength member is coated with PE for added protection.
-
Loose tubes and filler ropes are stranded around the central core, creating a compact, round cable structure with interstitial water-blocking fillers.
-
The core is longitudinally wrapped with plastic-coated steel tape (PSP), followed by a PE inner sheath and a blue flame-retardant PVC outer jacket for superior fire resistance and durability.
This cable not only retains all the advantages of standard optical fiber cables but also delivers specialized safety and reliability required by the coal mining industry. Even in emergency situations, communication remains stable, helping to minimize losses. The product is certified by the Coal Mine Safety Supervision Authority and carries an official mining safety mark.
Key Features
-
Excellent Mechanical & Thermal Performance – Stable operation under harsh conditions.
-
Superior Water Resistance – Loose tubes are made of water-blocking materials and filled with gel for fiber protection.
-
High Pressure Resistance – Rugged design ensures durability against external stress.
-
Moisture & Rodent Protection – PSP steel tape and special filling provide strong anti-moisture and anti-rodent performance.
-
Flame-Retardant Jacket – Blue PVC sheath ensures reliable fire resistance, meeting mine safety standards.
Applications
-
Coal, Gold, Iron & Other Mines – Safe and stable data transmission in underground operations.
-
Harsh Industrial Environments – Flame-retardant and moisture-proof communication networks.
Optical Characteristics
|
Item Name
|
MGXTSV Fiber Optic Cable
|
|
Place of Origin
|
Guangdong,China
|
|
Model Number
|
MGTSV
|
|
Brand Name
|
JQ
|
|
Fiber Type
|
Single mode ITU-T G652D
|
|
Fiber No.
|
2-24 cores
|
|
Strength Member
|
Central Steel Wire
|
|
Material of Jacket
|
Flame-retardant Sheath
|
|
Cable Structure
|
Unit Tube
|
|
Certificate
|
ISO9001/CE/RoHS/CE
|
|
Storing Temperature
|
-40℃ to +70℃
|
|
Application
|
Duct/Aerial
|
Features
-
Excellent flame-retardant properties for enhanced safety in mining environments.
-
High-strength, hydrolysis-resistant loose tube ensures long-term reliability.
-
Double sheath and single armor design provide superior crush resistance, waterproofing, and rodent protection.
-
Water-blocking non-woven tape improves moisture resistance and cable durability.
-
Special gel filling inside loose tubes offers optimal fiber protection.
-
Blue PVC or LSZH outer jacket is flame-retardant and easy to identify during installation.
-
Strong crush resistance combined with high flexibility for easier handling and laying.
Optical Characteristics
| Items |
Unit |
Specification |
| G652D |
| Mode Field Diameter |
1310nm |
um |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| Cladding Diameter |
um |
124.8±0.7 |
| Cladding Non-Circularity |
% |
≤0.7 |
| Core-Cladding Concentricity Error |
um |
≤0.5 |
| Coating Diameter |
um |
245±5 |
| Coating Non-Circularity |
% |
≤6.0 |
| Cladding-Coating Concentricity Error |
um |
≤12 |
| Cable Cutoff Wavelength |
nm |
acc≤1260 |
| Attenuation(max.) |
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dBkm |
≤0.22 |
Technical Parameters
Fiber
Count |
Cable
Diameter(mm) |
Cable Weight
kg/km) |
Tensile Strength
Long/Short
Term (N) |
Crush Resistance
Long/Short
Term (N/100mm) |
Bending
Radius Static/Dynamic
mm)
|
| 2~12 |
8 |
78 |
1000/3000 |
1000/3000 |
10D/20D |
| 14~24 |
10 |
90 |
1000/3000 |
1000/3000 |
10D/20D |
Samples show
Application
Suitable for Mine Duct / Aerial
Storage / Operating Temperature: -40℃~+70℃

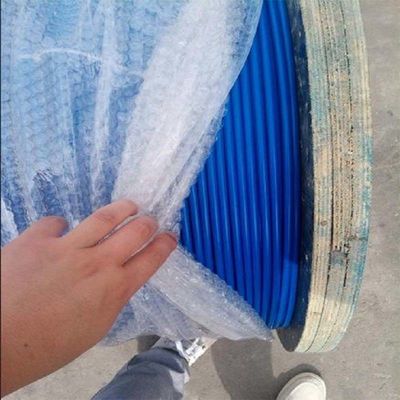

Packing&Delivery
1/2/3/4/5 km in one wooden drum,deliver days:5-8work days
FAQ – MGXTSV Mine Flame-Retardant Fiber Optic Cable
1. What is MGXTSV fiber optic cable used for?
MGXTSV cable is specially designed for coal mines, gold mines, iron mines, and other underground or hazardous environments. It provides stable optical communication even under harsh conditions, with excellent flame-retardant and anti-rodent properties.
2. Is this cable certified for mining applications?
Yes. Our MGXTSV cable is certified by the Coal Mine Safety Supervision Authority and carries the official mining safety mark, ensuring compliance with industry safety standards.
3. What makes MGXTSV cable flame-retardant?
It uses a blue flame-retardant PVC or LSZH jacket combined with double sheath protection, which significantly improves fire resistance and ensures safe communication during emergencies.
4. How does it protect the fibers from water and mechanical stress?
The cable features loose tubes filled with special gel, a water-blocking tape layer, and PSP steel tape armor, providing excellent waterproofing, crush resistance, and long-term durability.
5. Can this cable resist rodent damage?
Yes. The armored layer and double sheath design offer strong anti-rodent protection, preventing cable damage and costly maintenance.
6. What core counts and configurations are available?
We offer MGXTSV cables with various fiber counts (e.g. 2–144 cores) to meet different project requirements. Custom lengths and configurations are also available.
7. Do you provide OEM/ODM services?
Yes. We can print your logo, customize the jacket color, and adjust fiber count or structure according to your project needs.
8. What is the typical delivery time?
For standard specifications, we usually ship within 3–7 working days. Large or customized orders may require extra production time.
