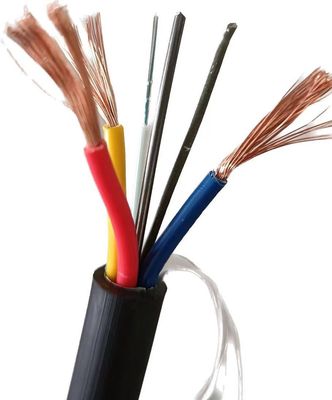

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC
Contattaci

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC

Quantità di ordine minimo : 1 km Imballaggi particolari : 1/2/3/4/5 km in un tamburo di legno
Tempi di consegna : 3-5 giorni Termini di pagamento : L/C, T/T, Western Union
Capacità di alimentazione : 30km al giorno
Luogo di origine: Guangzhou China Marca: JQ/OEM/Customize
Certificazione: ISO9001 ROHS CE FCC SDOC Numero di modello: GYDTS/OPLC

Informazioni dettagliate
Materiale della giacca: PE, MDPE, LSZH, HDPE Diametro esterno: 9 mm
Conta delle fibre: 2-144Core Struttura: Tubo unitario/cavo torto a filo
Membro della forza: fili di acciaio/FRP Filati di vetro Nome prodotto: Cavo a fibra ottica ibrida
Tipo di fibra: YOFC o su richiesta Applicazione: Aereo, condotta
Colore: Nero Lunghezza: 2 km o lunghezza personalizzata
Tipo di fibra: MODO/MULTIODIO ONDIE Colore del cavo: Nero/Giallo/Arancione/Verde/Blu/Viola/Grigio
Marchio: JIANGHONG o OEM Giacca esterna: PE (HDPE/LDPE), PVC, LSZH
Tipo di cavo: Ibridi Materiale di fibra ottica: Cavi di alimentazione PMMA e di rame
Forma materiale: Filo rotondo Materiale della giacca: PVC/LSZH/OFNR/OFNP
Materiale di guaina: PVC Conta delle fibre: 2-144 core
Standard: YD/T 901 / IEC 60794-3-10 Perdita di ritorno: ≥50dB
Installazione: antenna/tubo/canale
Evidenziare:

6 core hybrid fiber optic cable

,

8 core photoelectric hybrid cable

,

OPLC fiber optic cable with copper wires

Descrizione di prodotto

G652D 6 Core Hybrid Fiber Optic Cable With 2 Copper Power Wires


GYDTW/GYDTS



Hybrid Cable 2–24 Core GYXTW with Two Copper Power Wires



Composite fiber optic cables combine multiple components—such as optical fibers and metal conductors—within a single bundle. This design allows multiple transmission paths in one cable, reducing installation costs and lead time. The 250μm fiber is placed in a loose tube made of high-modulus plastic, filled with a water-resistant compound. The tube is wrapped with a layer of PSP, with water-blocking material between the PSP and the loose tube to ensure compactness and watertight performance. Two parallel steel wires run along both sides of the steel tape for added strength. The cable is completed with a durable polyethylene (PE) jacket.

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 0





Features



  • Excellent mechanical and temperature performance

  • High-strength loose tube with hydrolysis resistance

  • Special filling compound for optimal fiber protection

  • Compact, lightweight, flexible design with strong bend resistance

  • Low dispersion and attenuation; precise fiber excess length and controlled stranding ensure superior mechanical and environmental performance

  • Steel wire and corrugated steel tape armoring provide moisture resistance and crush protection



Optical Fiber Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%







Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D





Product Image

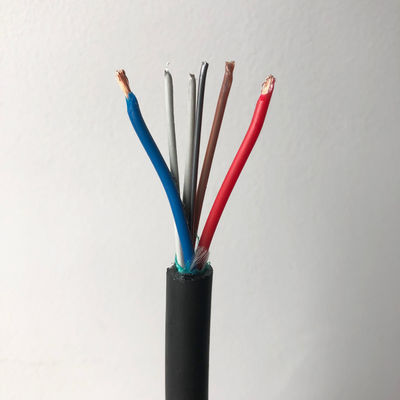

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 1





Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.





Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days





G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 2

G652D 6 8 Core Photoelectric Hybrid Fiber Optic Cable With 2 Copper Power Wires OPLC 3



FAQ

  1. Are you a trading company or manufacturer?
    We are a manufacturer with 10 years of experience, specializing in the research, development, and production of fiber optic cables, drop cables, patch cords, and more. Our factory is located in Guangzhou—welcome to visit us!

  2. What about product quality?
    Every fiber is tested before delivery to ensure quality. After price confirmation, you can request free samples to check our products.

  3. Do you accept small orders?
    Yes, small orders are welcome. We support new customer projects because business often starts small.

  4. What is the delivery time?
    Typically 3–7 working days, depending on order quantity. We will arrange your goods as soon as possible after payment.

  5. Do you provide OEM services?
    Yes, OEM is available. We can print your logo on the products, and we are open to any customization ideas you have.
